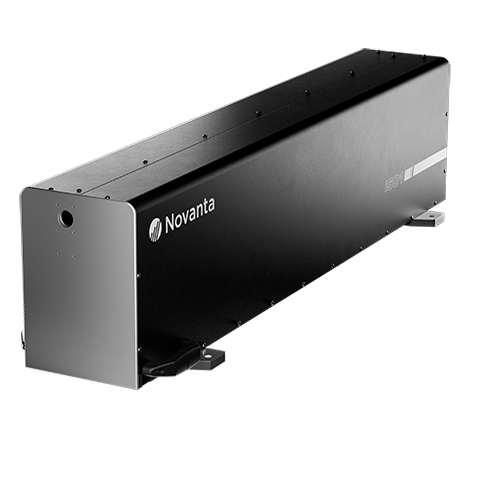

i Series – 400 Watt CO2 Lasers

The compact, energy efficient Synrad i Series delivers 400W of near-perfect beam quality with 45° linear polarization for high-precision applications. Built around a hybrid waveguide/unstable resonator featuring fast rise/fall times and field replaceable, integrated 48V RF modules. i Series delivers immediate energy cost savings with best-in-class energy efficiency, up to 23% better than other 400W lasers. With its single tube design, i Series weighs 24% less than competitive lasers – an important factor when mounting on moving gantry systems or robotic motion systems.

i Series – 400 Watt CO2 Lasers

Click and drag to scroll through.

Description

The Synrad i401 includes a TCP/IP web-based Internet interface that allows access to information about LED and RF module status – including voltage, current, and temperature measurements using a standard web browser to manage laser operation and ensure optimal performance. Built-in gas purge port for easy connection to nitrogen or CDA purge systems and an internal electromechanical shutter for operator safety make the Synrad i401 the ultimate OEM laser.

Highlights External Link Pop Up
Higher yields
NOVT_i_Series_Highlight_Pop_Out_3_Image

Greater Detail With Faster Throughput

400 Watts of average power for faster throughput and higher yields across a variety of target materials. Internal beam conditioning delivers near perfect circular output in both near and far field, ensuring a focused spot size with higher power density for greater detail and faster processing speeds.

High reliability
NOVT_i_Series_Highlight_Pop_Out_Image

Maximum Uptime

Highly reliable RF modules ensure maximum uptime and are field replaceable for improved serviceability

Industry 4.0 ready
NOVT_i_Series_Highlight_Pop_Out_2_Image

Real-Time Monitoring

Real-time performance monitoring through a TCP/IP web-based Internet interface that allows access to advanced onboard diagnostics to reduce unplanned downtimes

Specifications
Model i401 (10.2 μm)i401 (10.6 μm)
Output Power1

> 400 Watts

> 400 Watts

Wavelength

10.2 µm

10.6 µm

Beam Quality (M2

< 1.2

< 1.2

Power Stability2 (cold start)

± 7%

± 7%

Beam Diameter3

6.7 mm ± 0.7 mm

6.7 mm ± 0.7 mm

Operating Frequency

0 – 100 kHz

0 – 100 kHz

Duty Cycle Range

0 – 100%

0 – 100%

Cooling

Water

Water

Dimensions (LxWxH) mm (in.)

1227 x 208 x 300
(48.3 x 8.2 x 11.8)

1227 x 208 x 300
(48.3 x 8.2 x 11.8)

Weight kg (lbs.)

59.0 kg (130 lbs.)

59.0 kg (130 lbs.)

1 – Power level guaranteed for 2 years from date of shipment, regardless of operating hours, within recommended coolant flow rate and temperature range

2 – Measured from cold start as ±(Pmax-Pmin)/(Pmax+Pmin)

3 – Measured 1/e2 diameter at laser output

Note – See Operator’s Manual for full specifications and associated operating conditions.
