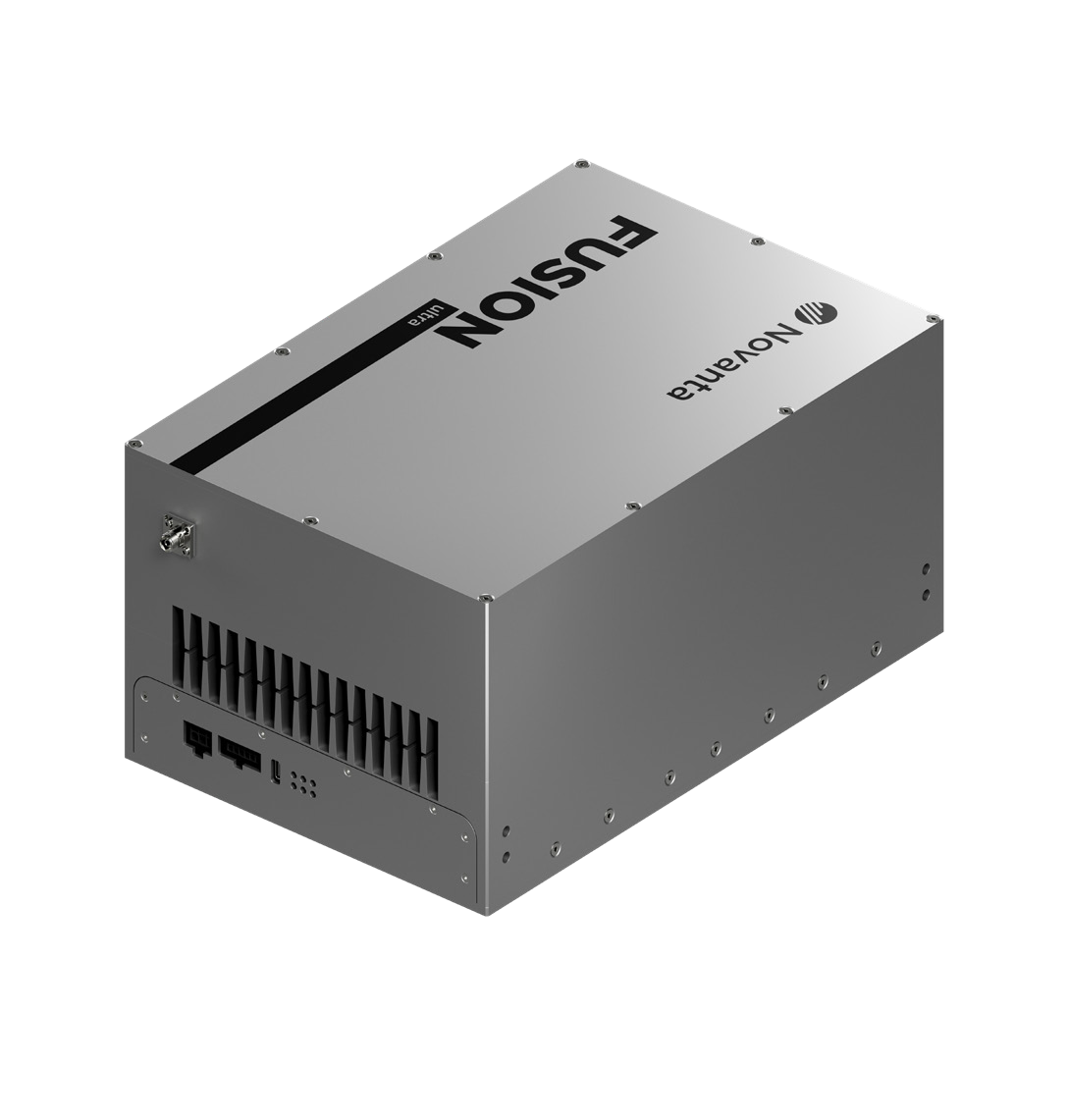

We drive innovation, delivering substantial value to the Life Sciences and Scientific R&D communities. The new FUSIONultra, an OEM-ready Configurable Light Engine Platform, takes illumination to the next level with faster acquisition speeds and unmatched image quality.

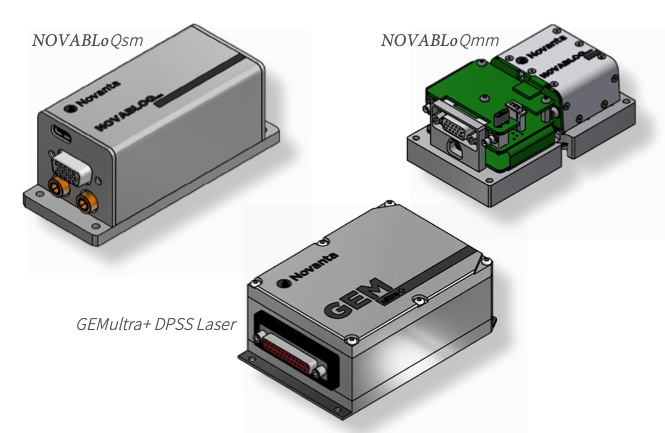

FUSIONultra is a flexible, modular platform that incorporates any combination of our DPSS lasers and single mode diode lasers with optional beam shaping and despeckling modules to optimize complex analysis and experiment results.
Purpose-built for OEM integration to accelerate throughput, maximize illumination uniformity, and eliminate artifacts. FUSIONultra combines ULTRALOQ™ technology with high-power output to deliver consistent results with unmatched reliability.

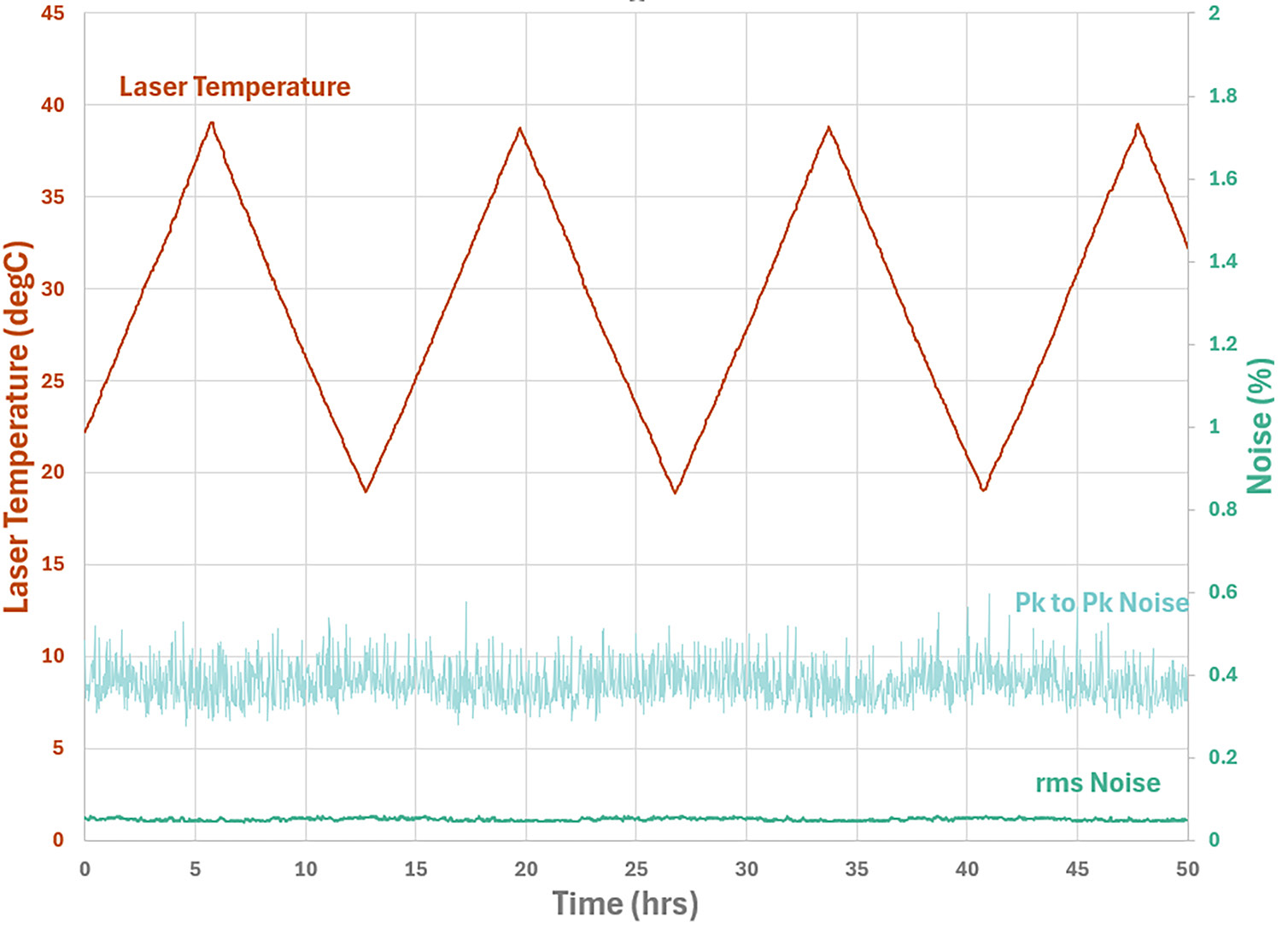

Rapidly changing ambient temperatures can stress laser cavities, causing unstable laser output, resulting in false positives, unplanned downtime and reduced lifespan. Novanta’s ULTRALOQ™ technology features a meticulously engineered material system designed specifically to endure extreme temperatures and rapidly changing environments while supporting fully automated manufacturing processes. The result is a consistent, ultra-stable laser platform that maximizes uptime, enhances quality and minimizes long term ownership costs.
Our integrated despeckling module eliminates spatial noise to enhance quantification accuracy across the entire sample with uniform illumination and consistent signal fidelity. The independent despeckling module is securely mounted into the light engine housing, eliminating the need for a secondary unit and simplifying integration into complex instruments and systems.

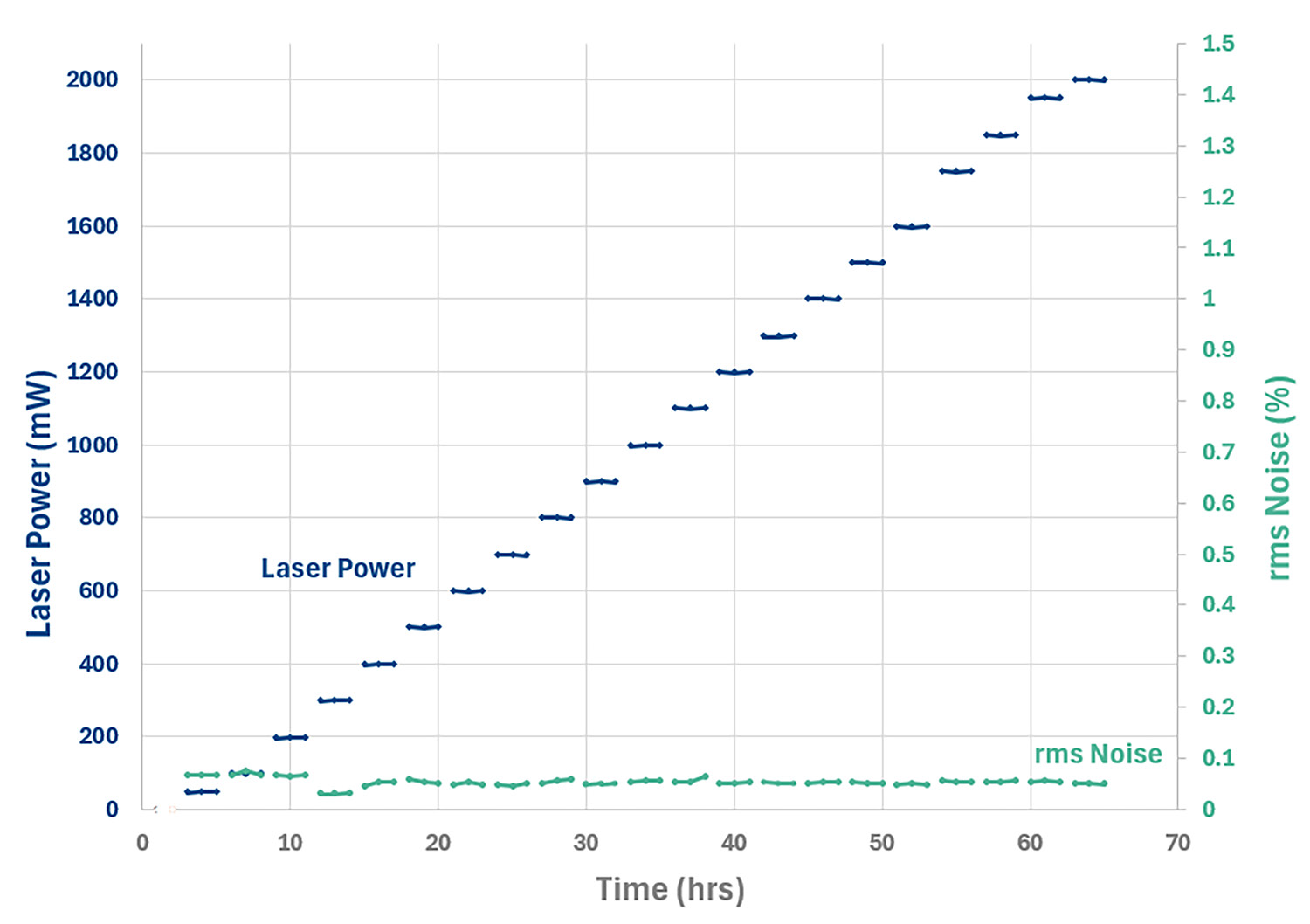

Enable high-speed fluorescence testing with dynamic power switching, delivering stable performance and expanded signal range for precise proteomic and sequencing control. Our advanced power modulation allows for precise measurements and fast data acquisition to optimize testing processes without damaging sensitive samples.

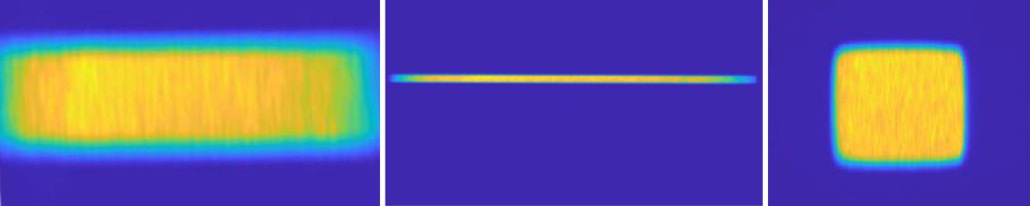

Built-in beam shaping enables precise illumination control to refine beam output to lines, rectangles, or square shapes reducing background noise, optimize uniformity, and improve signal-to-noise ratio in fluorescence imaging applications. The uniformity prevents over or under exposure in processing providing more accurate scientific data.
FUSIONultra offers both single-mode and multi-mode laser output options to optimize both highly precision testing and analysis, while providing more energy for faster processing speed. Single-Mode: Use single-mode to resolve fine cellular and sub-cellular structures with enhanced spatial coherence and minimal modal dispersion—enabled by a compact 50 µm multi-mode fiber core. Multi-Mode: Higher power multi-mode output is enhanced with our ULTRALOQ™ technology ensures performance stability for reliable results at higher processing speeds.
Meeting high performance specifications across a wide range of power levels is challenging, and often requires separate attenuators, leading to added cost and integration challenges for OEMs. By incorporating an onboard VOA, achieving a maximum attenuation of OD2 ensures stability and adherence to performance specifications, even during power changes, enhancing operational flexibility while reducing integration complexity and cost.
